Series: 5W6 (1.00" Insert) Hi-Tork Style

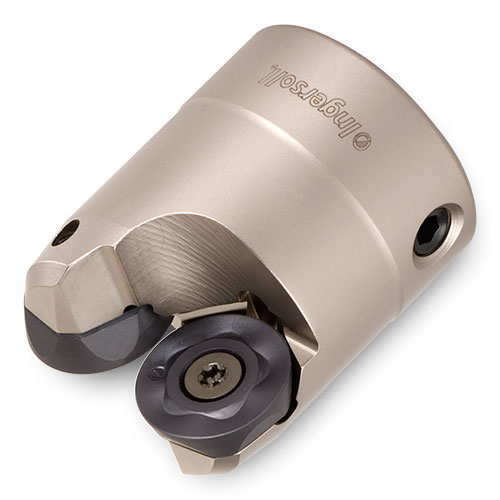

Representative image shown ⓘ
The product shown is for illustrative purposes only and is intended to represent the entire series. The actual product may vary.
Product Series Features:
- Toroid Button Face Mill
- Button I.C.: 1.00"
EDP |
Part Number |

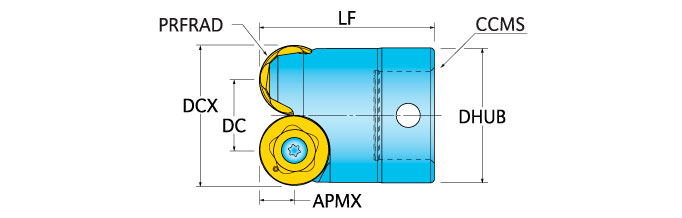

DCX Cutting Dia. Max. |
DC Cutting Dia. |
APMX Depth of Cut Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
PRFRAD Profile Radius |
DCON Bore Dia. |
CSP Coolant |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3028292 | 5W6S-20R01 | 2.000 | 1.000 | 0.500 | 2.500 | 2 | 0.500 | 1.2500 | No | 1.0 | NA |
Notes:
- *Note: Holders for this product are available by formal quote
