Series: 5W6 (.500-1.00" Inserts)

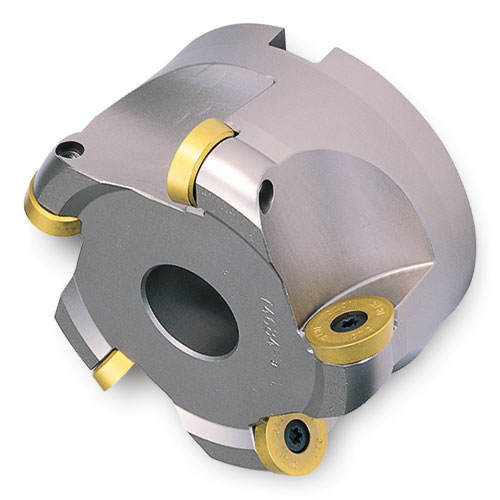

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Button Face Mill
- Cutting Edge Length: .25", .375" & .50"
- Button I.C.: .500", .750" & 1.000"
EDP |
Part Number |
DCX Cutting Dia. Max. |
APMX Depth of Cut Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
PRFRAD Profile Radius |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3005666 | 5W6H-20R01 | 2.000 | 0.250 | 1.625 | 4 | 0.500 | 0.7500 | 0.312 | 5.0 | NA |
EDP |
Part Number |
DCX Cutting Dia. Max. |
APMX Depth of Cut Max. |
OAL Overall Length |
ZEFF Eff. Teeth |
PRFRAD Profile Radius |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3005666 | 5W6H-20R01 | 2.000 | 0.250 | 1.625 | 4 | 0.500 | 0.7500 | 0.312 | 5.0 | NA | |||
| 3005667 | 5W6H-30R01 | 3.000 | 0.250 | 1.750 | 6 | 0.500 | 1.0000 | 0.375 | 2.5 | NA | |||
| 3009265 | 5W6M-30R01 | 3.000 | 0.375 | 1.750 | 5 | 0.750 | 1.0000 | 0.375 | 4.0 | NA |
