Series: 2J1Q (12 mm Insert)
Product Series Features:
- 90° Face Mill
- .47" Max. depth of cut
- Insert with 2 indexes
- Insert Corner: .015", .031", .062", .093", .125" and .250"R

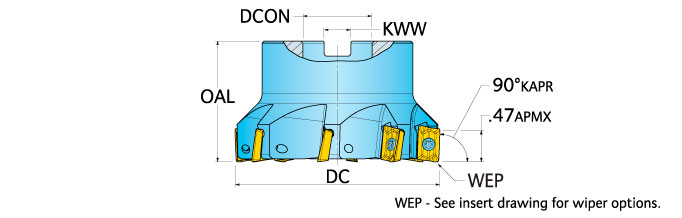

EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
DXF File |
|
|---|---|---|---|---|---|---|---|---|
| 3010699 | 2J1Q-40R01 | 4.000 | 2.000 | 5 | 1.5000 | 0.625 |
Notes:
- **Note, OBSOLETE product series.
- Refer to the following for stocked alternatives:
- HiPos+, series 2J1R
- HiPosTrio, series KJ5G, KJ6G
- DiPosDuo, series TJ5G, TJ6G
- DiPosTetra, series TJ5Q, TJ6Q
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
DXF File |
|
|---|---|---|---|---|---|---|---|---|
| 3010697 | 2J1Q-15R01 | 1.500 | 1.570 | 4 | 0.5000 | 0.250 | ||
| 3010698 | 2J1Q-15R02 | 1.500 | 1.570 | 3 | 0.5000 | 0.250 | ||
| 3010685 | 2J1Q-20R01 | 2.000 | 1.570 | 3 | 0.7500 | 0.375 | ||
| 3003339 | 2J1Q-20R02 | 2.000 | 1.570 | 6 | 0.7500 | 0.312 | ||
| 3010702 | 2J1Q-25R01 | 2.500 | 1.570 | 5 | 0.7500 | 0.312 | ||
| 3010686 | 2J1Q-30R01 | 3.000 | 1.750 | 5 | 1.0000 | 0.375 | ||
| 3004508 | 2J1Q-30R02 | 3.000 | 1.750 | 8 | 1.0000 | 0.375 | ||
| 3010699 | 2J1Q-40R01 | 4.000 | 2.000 | 5 | 1.5000 | 0.625 | ||
| 3006125 | 2J1Q-40R02 | 4.000 | 2.000 | 10 | 1.5000 | 0.625 |
