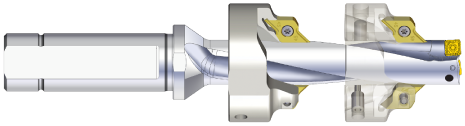

Series: CB-R02 Chamfer Rings
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Combines drill & chamfer in one operation
- Fits Ø14.3-25.4 mm, 3, 4 & 5xD Bodies
- Max. chamfer .118" × 45°
EDP |
Part Number |
Fits Drill Series |
Max. Chamfer Size |
D Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|
| 3204189 | CB140R02 | QR014 | .118" × 45° | 1.50 | NA | NA | NA | |
| 3204851 | CB145R02 | QR0145 | .118" × 45° | 1.50 | NA | NA | NA | |
| 3204684 | CB150R02 | QR015 | .118" × 45° | 1.50 | NA | NA | NA | |
| 3203837 | CB160R02 | QR016 | .118" × 45° | 1.65 | NA | NA | NA | |
| 3204685 | CB170R02 | QR017 | .118" × 45° | 1.65 | NA | NA | NA | |
| 3204190 | CB180R02 | QR018 | .118" × 45° | 1.65 | NA | NA | NA | |
| 3204686 | CB190R02 | QR019 | .118" × 45° | 1.65 | NA | NA | NA | |
| 3204687 | CB200R02 | QR020 | .118" × 45° | 1.65 | NA | NA | NA | |
| 6113904 | CB210R02 | QR021 | .118" × 45° | 1.85 | NA | NA | NA | |
| 6113905 | CB220R02 | QR022 | .118" × 45° | 1.85 | NA | NA | NA | |
| 6113906 | CB230R02 | QR023 | .118" × 45° | 1.85 | NA | NA | NA | |
| 6113907 | CB240R02 | QR024 | .118" × 45° | 1.85 | NA | NA | NA | |
| 6113908 | CB250R02 | QR025 | .118" × 45° | 1.85 | NA | NA | NA |

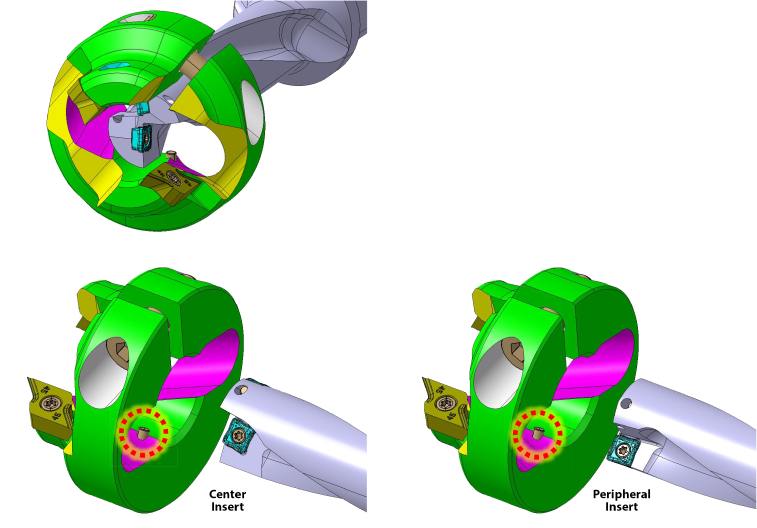

Notes:
- Chamfer rings are compatible with Gold-Twist, Quad-Twist, and Quad-Drill Plus drills.
