Series: QHU - Plunge Rough Mill

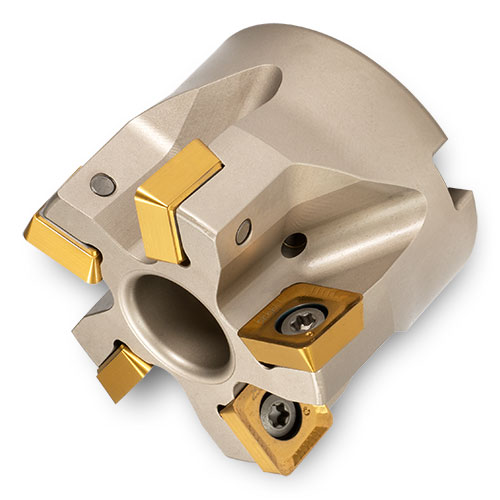

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø2.00-4.00"
- .44" Depth of cut
- 13 mm Insert with 4 indexes
- Insert corners: .031", .047", .062", .094", .125" R
EDP |
Part Number |
DC Cutting Dia. |
KAPR1 Cutting Edge Angle |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2904788 | QHU-20015D1R01 | 2.000 | 2.2 | 1.57 | 5 | 0.7500 | 0.312 | NA | |||
| 2904790 | QHU-25015D1R01 | 2.500 | 2.3 | 1.57 | 5 | 0.7500 | 0.312 | NA | |||
| 2904791 | QHU-30017D3R01 | 3.000 | 2.3 | 1.75 | 7 | 1.0000 | 0.375 | NA | |||
| 2904792 | QHU-30017D3R02 | 3.000 | 2.3 | 1.75 | 5 | 1.0000 | 0.375 | NA | |||
| 2904793 | QHU-40023D5R01 | 4.000 | 2.3 | 2.38 | 9 | 1.5000 | 0.625 | NA | |||
| 2904794 | QHU-40023D5R02 | 4.000 | 2.4 | 2.38 | 7 | 1.5000 | 0.625 | NA |
Notes:
- Insert screw tightening torque: 30-35 in*lb.
- *Images are a representation of the product series and therefore may not be an exact representation of the specific item
