Heavy Duty Milling

SF6H, SF6N - Finishing Face Mill

SF6N - Finishing Face Mill (18 mm Insert)

SJ2N, SJ6N - 90° Heavy Duty Face Mill

SJ6N - 90° Face Mill

SN2N - 45° Heavy Duty Face Mill

SN2R - 45° Heavy Duty Face Mill

SN6N - 45° Face Mill

SP6H Hi-Feed Face Mill (12.7mm Insert)

SP6N Hi-Feed Face Mill (18 mm Insert)

SHU- Plunge Rough Mill

2SJ1H, 2SJ1L - 90° Shell Mill

2SJ1N - 90° Heavy Duty Shell Mill

YXM Finishing Insert

DPM436R/L (25 mm)

Features & Benefits
Tools

Features and Benefits

Tangential inserts present the strongest carbide cross-section to the cut
Stronger cutter body cross-section
Designed for extremely heavy metal removal
Available as end mills, face mills, plunge mills, shell mills, finish mills and hi-feed mills

Videos and PDFs

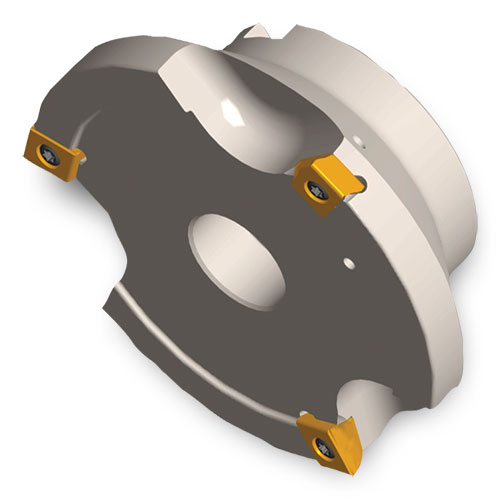

Photo of S-Max

S-Max
SF6H, SF6N - Finishing Face Mill

.01" Max. depth of cut
Insert corner: .031" R
Insert with 4 indexes
SF6H uses 12.5mm IC insert
SF6N uses 18mm IC insert

Photo of S-Max_Micro

S-Max_Micro
SF6N - Finishing Face Mill (18 mm Insert)

.01" Max. depth of cut
18 mm Insert with 4 indexes
Insert corner: .031" R

Photo of S-Max

S-Max
SJ2N, SJ6N - 90° Heavy Duty Face Mill

Ø4.000-12.000"
Insert with 4 indexes
.68" Max. depth of cut
2 Different steel seating pads accomodate both general purpose and heavy duty inserts
SJ2N offers pocket protection

Photo of S-Max

S-Max
SJ6N - 90° Face Mill

Ø3.000-12.000"
18 mm Insert with 4 R.H. indexes
.68" Max. depth of cut

Photo of S-Max

S-Max
SN2N - 45° Heavy Duty Face Mill

Ø5.000-12.000"
18 mm Insert with 4 R.H. indexes
.35" Max. depth of cut
Two different steel seating pads accomodate general purpose and heavy duty inserts

Photo of S-Max

S-Max
SN2R - 45° Heavy Duty Face Mill

Ø4.000-12.000"
25 mm Insert with 4 indexes
.53" Max. depth of cut

Photo of S-Max

S-Max
SN6N - 45° Face Mill

Ø4.000-6.000"
18 mm Insert with 4 R.H. indexes
.35" Max. depth of cut

Photo of S-Max

S-Max
SP6H Hi-Feed Face Mill (12.7mm Insert)

Ø2.00-4.00”
.059" Depth of cut
12.7 mm Insert with 4 indexes
10° Hi-feed rougher
Heavy duty & super strong!
Excellent performance & economy!

Photo of S-Max

S-Max
SP6N Hi-Feed Face Mill (18 mm Insert)

Ø4.00-8.00”
.072" Depth of cut
18 mm IC Insert with 4 indexes
10° Hi-feed rougher
Heavy duty & super strong!
Excellent performance & economy!

Photo of S-Max

S-Max
SHU- Plunge Rough Mill

Ø2.000-4.000"
.375" Max. depth of cut (12.7 mm insert)
.590" Max. depth of cut (18 mm insert)
Inserts with 4 indexes
Insert corner: .062" R

Photo of S-Max

S-Max
2SJ1H, 2SJ1L - 90° Shell Mill

Ø3.000-4.000"
12.7 mm Insert with 4 indexes
Insert corners: .031", .062" R
Half Eff./ RH Helix
3.10"-4.00" Depth of cut

Photo of S-Max

S-Max
2SJ1N - 90° Heavy Duty Shell Mill

Ø4.000"
18 mm Insert with 4 Indexes
All Eff./ LH Helix
3.49" Max. Depth of Cut
End Station Utilizes Interchangeable Steel Seating Pad
Uses Heavy Duty DNM inserts for the toughest applications
Insert Corner: .031", .062", .125" R

Photo of S-Max

S-Max
YXM Finishing Insert

Finishing Insert

Photo of S-Max

S-Max
DPM436R/L (25 mm)

S-Max 25 mm Inserts
R/L Handed Inserts
4 Indexes
